Heat exchanger calculator program

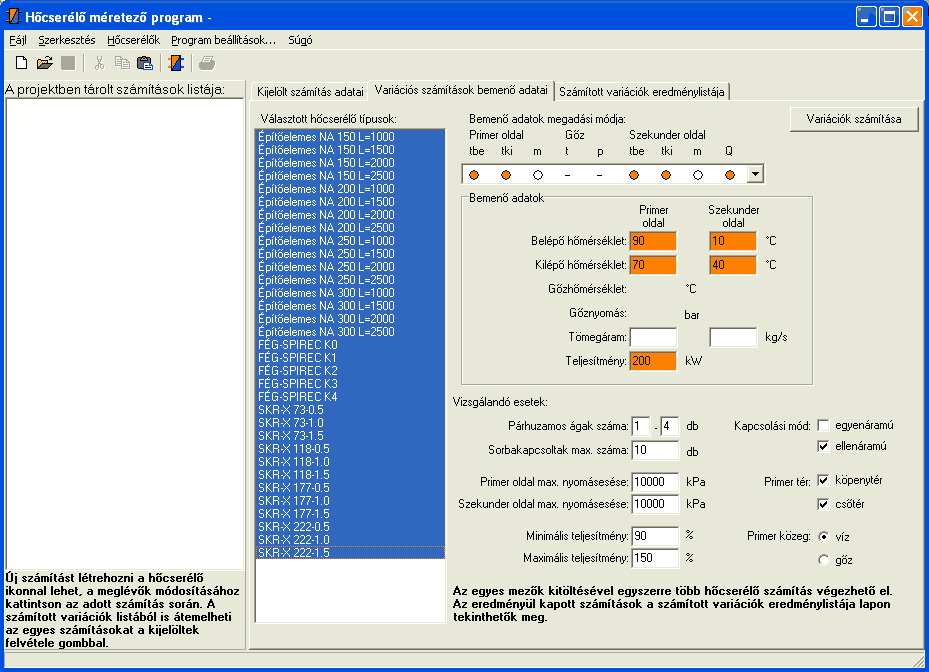

The program allows scaling of the FÉG-SPIREC, SKR-X and Building Block Heat Exchangers. The calculations can be done not only for a particular heat exchanger, but also for more than one type, with different parallel branches and serial connections, in a given circle.

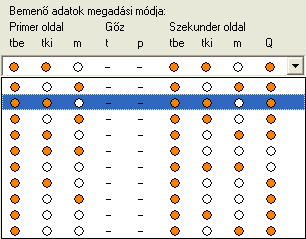

You can select what the input data is and the program will search for the current workpoint under the specified conditions.

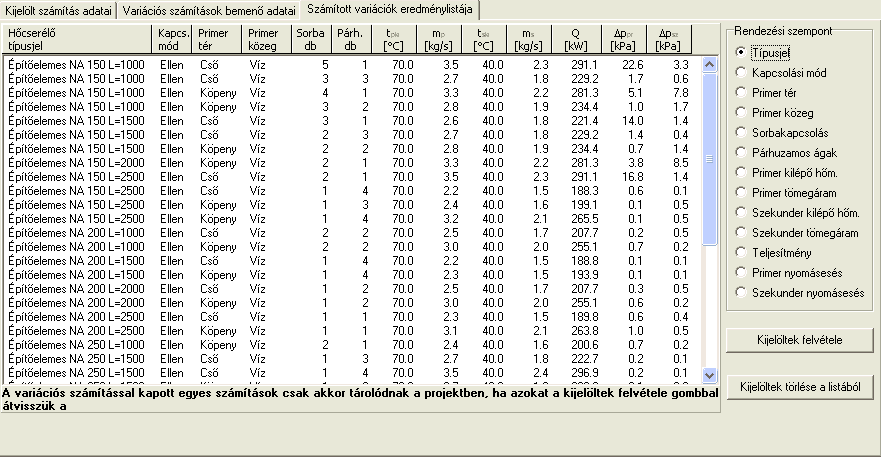

Solutions that meet the criteria can be sorted into different aspects to choose the best solutions.

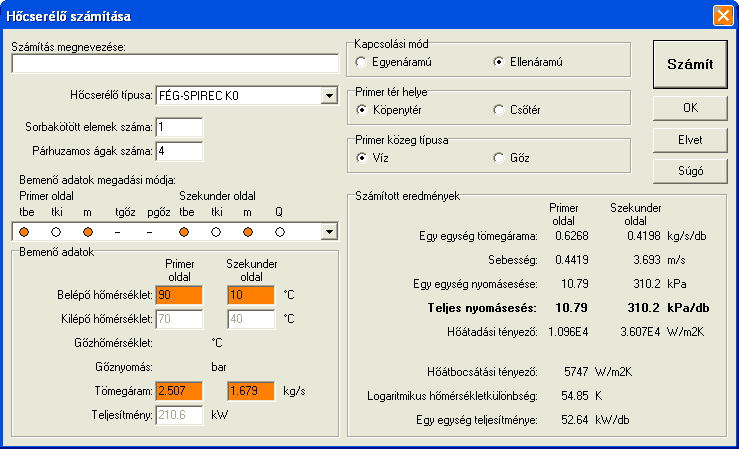

You can also perform a unique calculation for each heat exchanger, in which case several partial results are displayed.

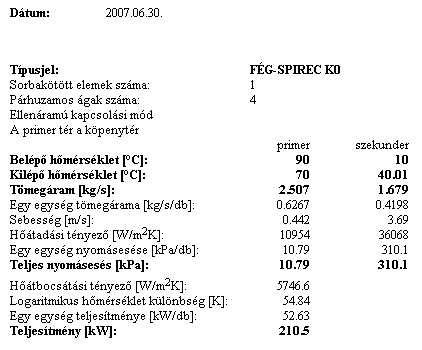

Finally, the calculations can be saved or printed.

---

Last modify: 11 September 2019
